VK-166
ScoutReport
- Scout
- Observe
- Report

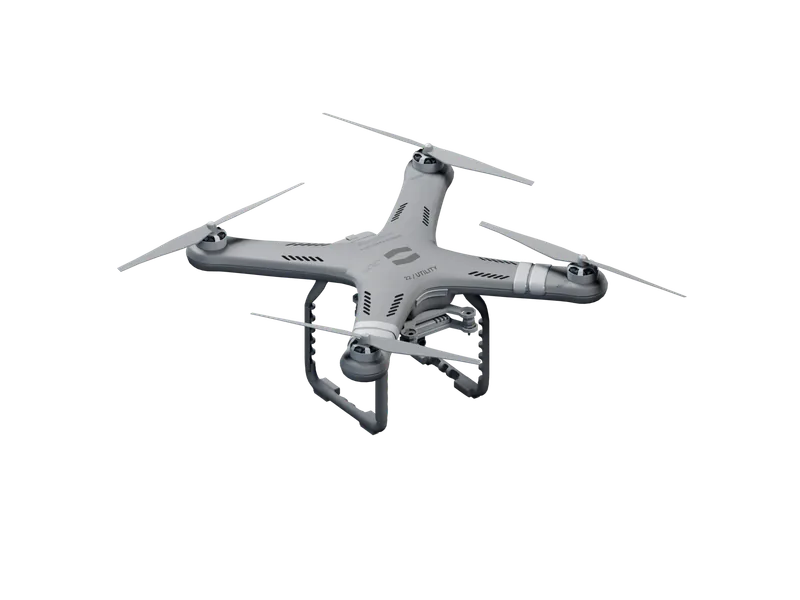

The VK-166 Recon is a quad multirotor float that scouts a site and reports what it finds, without a pilot. It flies 38 min per sortie within 8 km, in winds up to 12 m/s.
Specs.
Metric
Imperial
VK-166 Recon
Updated at 09·14·2026
- Height
- 21 cm
- 8.3 in
- Width
- 52 cm
- 20.5 in
- Length
- 52 cm
- 20.5 in
- Weight
- 2.4 kg
- 5.3 lb
- Endurance
- 38 min
- Range
- 8 km radius
- 5.0 mi radius
- Speed
- 18 m/s
- 40 mph
- Wind
- 12 m/s
- 27 mph
- Payload
- 0.6 kg
- 1.3 lb
- Noise
- 58 dBA at 10 m
- 58 dBA at 33 ft
Data.
Each sortie records 4K stills and video from a 12× zoom camera and 640×512 radiometric thermal at 30 Hz, each frame tagged with time and GNSS position. Data is stored on a 256 GB onboard card and handed over as JPEG, MP4 and radiometric TIFF.
Autonomy.
- Route Planning.
- Pilot-Free Flight.
- Return to Base.
Sensing.
- 4K EO Camera, 12× Zoom.
- 640×512 Thermal.
- Geotagged Records.
Sector.
Agriculture.
Scouts fields and access routes and reports what it finds before work starts.
Security.
Flies perimeters, gates and fence lines and reports what it sees.
Surveillance.
Looks over a wide site from the air before anyone walks it.
- Endurance.
- 38 min per sortie, hovering at sea level at 15 °C with the standard sensor payload.
- Wind.
- Holds its route in sustained winds up to 12 m/s (27 mph).
- Noise.
- 58 dBA at 10 m in hover, A-weighted, measured at ground level.
Imagery ©swisstopo
In flight.
1Data. Each sortie records 4K stills and video from a 12× zoom camera and 640×512 radiometric thermal at 30 Hz, each frame tagged with time and GNSS position.
2Security. Flies perimeters, gates and fence lines and reports what it sees.
Float.

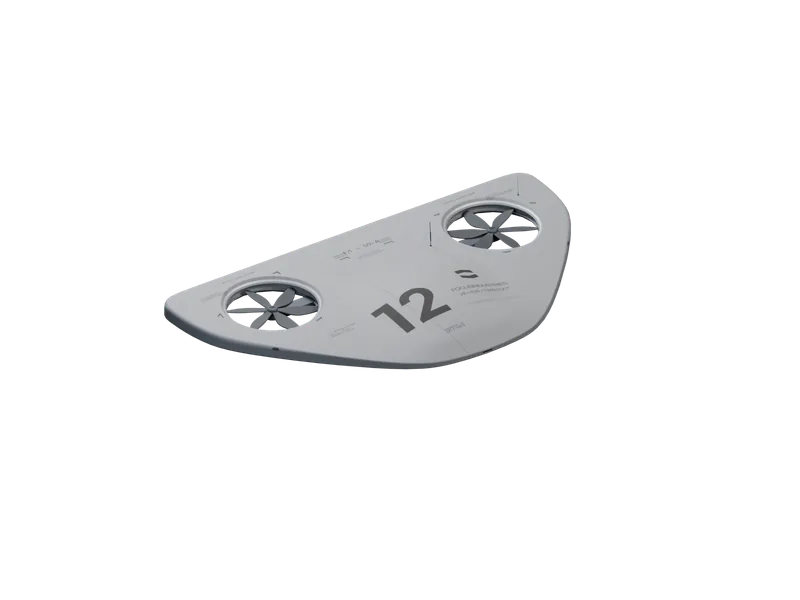

03Four floats, one for each kind of observation: recon, survey, a fixed watch and long routes.
Each one plans and flies its own route.
News.
Launches, field notes and company news, each with its figures and the conditions they were measured in.
We write when there is something to report.
6.4 km of fence in 19 minutes.
A VK-166 Recon flew the 6.4 km perimeter of a 40 ha solar site at night in 19 min, with no pilot, and reported four faults by thermal and zoom. Conditions, method, results, and what we changed.
Swarm mapping over open water.
Three CF-1211 floats mapped 126 ha of open water in 27 min as one coordinated swarm, with no pilot and no landmarks to stitch by. Conditions, method, results, and what we changed.

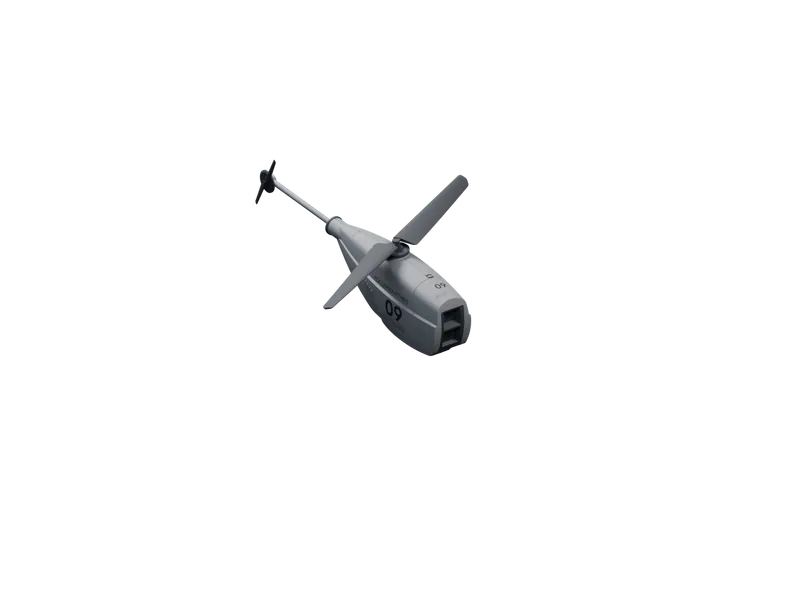

110 km out and back.
A ZZ-R12 Long flew 110 km out and back along a disused rail corridor in 1 h 58 min, without a pilot, and landed with 26% of its energy in reserve. How it plans a route that long, and where it decides to turn.
